EK300SM
Aplicacoes
ESTACA ESCAVADA
EK300SM
ESPECIFICACOES TECNICAS
| Chassis: | Cat® 352 Next Gen |
|
Potência Instalada:
|
424 hp |
|
Torque Máximo:
|
35,000 kg.m |
|
Diâmetro Máximo
|
4.6 m |
| Standard Drilling Depth: | 18.3 m |
| Crowd Force: | 37,500 kgf |
| Crowd Cylinder Stroke: | 2,750 mm |
| Main Winch Line Pull: | 32,200 kgf |
|
Peso total de transporte:
|
48,500 kg |
| Operation Weight: | 90,700 kg |
Saiba Mais
A EK300
At CZM we understand the importance of listening to our customers in order to keep producing innovative solutions and better products. We responded to market demands for increased power and reduced transport costs with the EK300 and EK300 Short Mast.
The EK300SM can work under a minimum working height of 30 feet at its tallest position, and still drill down to 60 feet with a five-element interlocking Kelly bar capable of handling full torque. With the mast boomed frontward and down, it is possible to work under as few as 25 feet overhead clearance, making it the shortest low clearance machine in the industry.
Base:
- The new Cat 352 powered by a fuel efficient Tier 4 Final C13 ACERT engine.
- Equipped with CAT Vision Link that allows management to monitor machine operations and maintenance data online.
Undercarriage:
- Caterpillar variable undercarriage VH5440/4900/900. Reinforced frame H style variable undercarriage.
Mast:
- Reinforced mast, with high resistance steel Weldox 900.
Main Winch:
- Special groove for better cable winding and longer cable life.
- Press-roller included.
- 2 gears allows for both high speed and high pulling force.
- Automatic gear shifting, for seamless operation, high production.
- Automatic down the hole winch stop.
- Free willing winch during crowd operation.
- Hydraulic and mechanic brake.
- Hydraulic measurement of pulling force displayed in the cabin.
Rotary:
- Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
- 3 groups of Hydraulic Motor / Planetary Gears for high torque and long life.
- Anti-cavitation, anti-shock and cooling system for longer hydraulic motor life.
- Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
- 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
- Automatic gear shifting, for seamless operation, high production.
- Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
- Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
- AM/FM Radio, Air conditioning/Heating.
- ROPS cab & Top protection.
- LCD monitor for Engine and Hydraulics computer, with diagnostic system.
- CZM Canbus System for Drilling Monitoring with auto functions.
EK300
Desenhos Técnicos
EK300

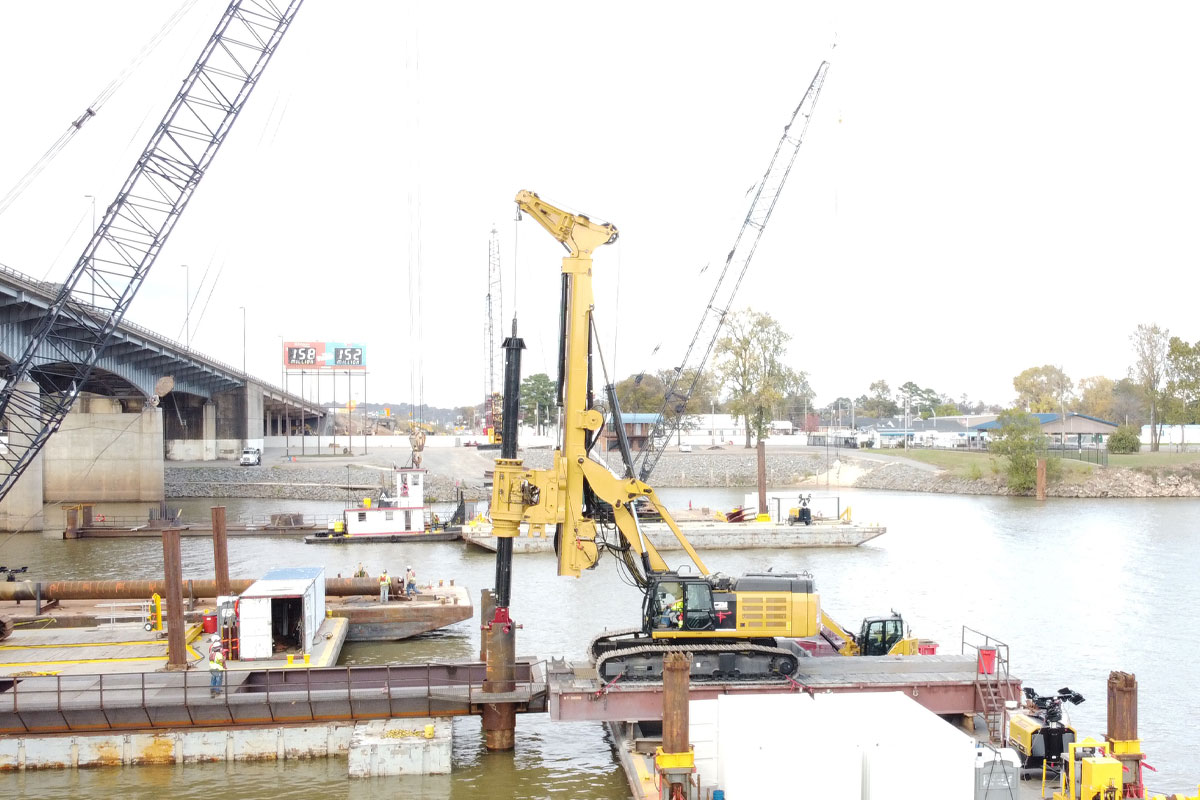

Fotos
